Long-Range/Wide Area Thermal & Visible Detection Camera
SightSensor TC
SightSensor TC combines thermal detection with visible color video for critical site perimeters and buffer zones. On-device analytics detect outdoor intruders, while color video helps security teams assess alarms.
With advanced stabilization, thermal clarity, Thermal AI Nuisance Alarm Filtering and model-specific inbound detection up to 220 m (TC220), SightSensor TC supports perimeter monitoring during the day and night.
SightSensor TC processes both video streams at the edge with AI‑driven geospatial analytics to detect real threats while filtering wildlife, weather, and other nuisance activity—reducing false alarms by up to 95%.
SightSensors are IP66 rated and built for high reliability and longevity in harsh environments.
Usage and Capabilities
Thermal and visible detection for site perimeters
Features & Benefits
Features
Benefits
Outstanding analytic performance
Acquires the target in milliseconds – inside, outside, or at the fence
Long-range site detection
Covers massive areas over hundreds of meters far and wide
One-click detection zones – not tripwires – based on size, speed, bearing, and geo-location
Detects targets from both thermal and visible sensors simultaneously for high detection accuracy
Thermal AI Nuisance Alarm Filtering
Exceptional AI performance during the day or night, and in all weather conditions
Buffer Zone protection
Early warning detection before breaches happen for a faster pre-emptive response
Great Thermal Clarity, Beautiful HD Color
Strikingly clear black and white thermal image and HD color helps discern the alarm in real time
Reliable analytic detection in wind, vibrations, camera shake
SightTracker System Integration
Automatically zoom and follow outdoor intruders with fast, on-target responsiveness
Onboard video storage
Store and retrieve thermal and visible alarms
Packed with Power - Engineered for Performance
SightSensors pack unprecedented power with the perfect outdoor human detector – thermal video – to detect targets with outstanding reliability. Integrated analytics place a red box on intruders based on rules that you define – speed, bearing, geo-location – with a crisp thermal image for quick assessment. An integrated HD visible imager provides color alarm assessment and visible spectrum detection.
Both thermal and color streams are viewable through a wide range of third-party VMS systems.
SightSensor TC offers economic benefits as well, detecting intruders over huge distances and wide areas hundreds of meters far and wide. This means fewer cameras and less infrastructure for larger outdoor areas.
Long-Range Perimeter & Fence-Line Detection

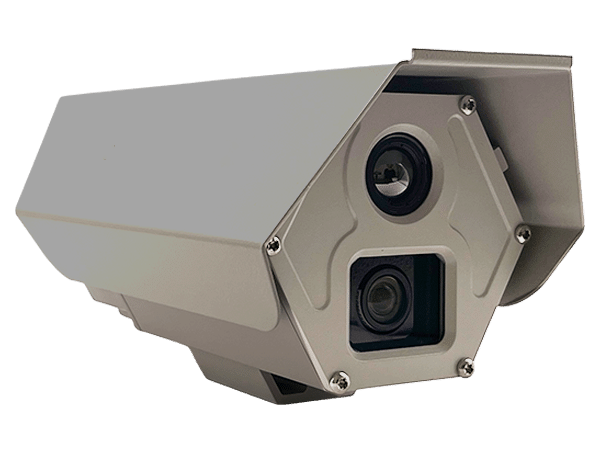

The SightSensor TC is a fixed IP thermal camera, available in two models that detect up to 200 meters:
- 384×288 SightSensor TC4 Series
- 640×480 SightSensor TC6 Series
Various lenses are available depending on your detection area. SightSurvey, our web-based design tool, picks the right lens for your site in a few clicks.
Details & Specifications

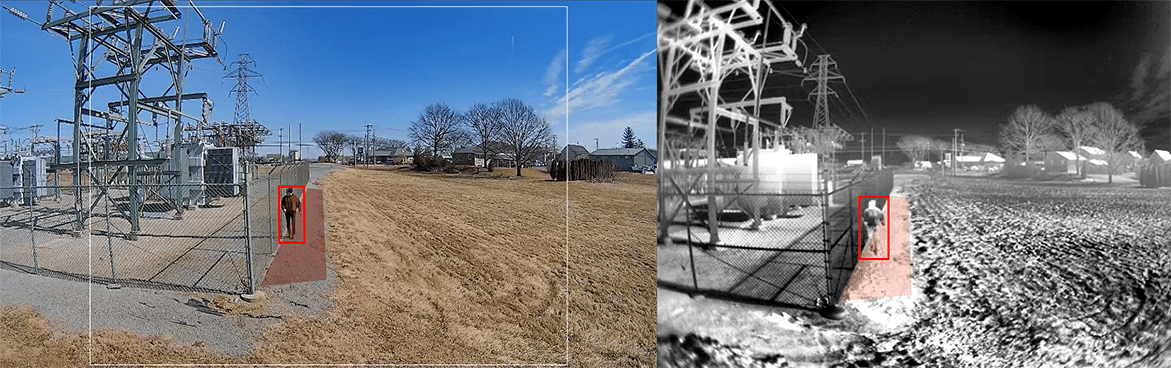

SightSensor TC – Running Detection

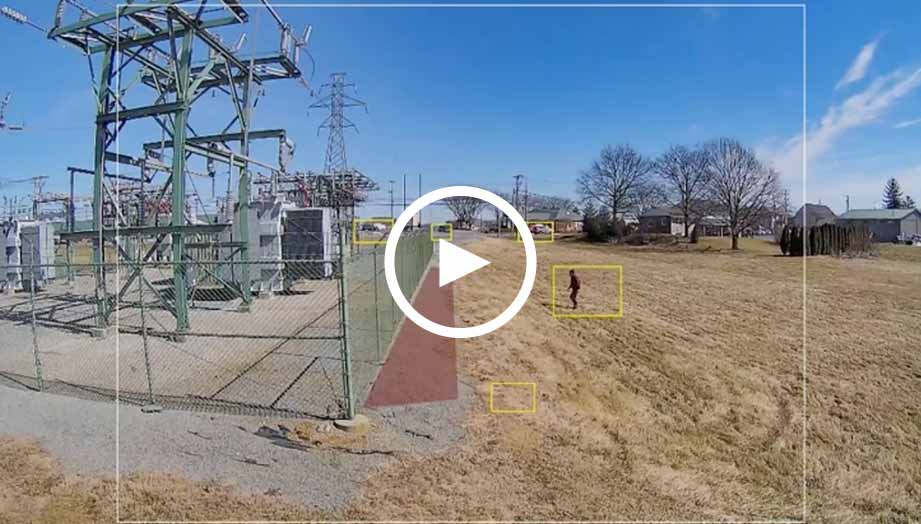

Yellow Boxes are Moving Objects That Do Not Meet Detection Criteria
From-To Zone Example
Wide-Area Detection (1280×1024)
The SightSensor 12 Series brings megapixel 1280×1024 thermal detection to large, open sites. The TC12 adds an integrated 4K visible imager and Dual AI Detection — thermal and visible AI confirm each detection together and give the operator a color image of the alarm. When the objective is protecting a wide area — a buffer zone, a yard, or the open ground inside a perimeter — the TC12 covers more ground and maintains AI classification of people and vehicles across the full detection area. The result is wide-area protection with verified alerts, fewer sensors, and less supporting infrastructure, lowering overall project costs.
The SightSensor TC12 combines a 1280×1024 thermal imager with an integrated 4K visible camera:
- TC1262: 62° thermal FOV, detects inbound intruders at 200m (656 ft); detection width at far end: 240m (787 ft); 88° visible FOV
